    VC 201
    VC 202
    VC 203

VC 201


Introducing VMC’s latest cost competitive VC-200 series Digital Weight Indicator.

STANDARD FEATURES

  • 10,000 Display resolution (NTEP approved)
  • 10 Pre-defined Tare value
  • Selectable kg / lb / g / oz
  • Programmable as Main Indicator & Remote Display
  • Programmable custom print format
  • Configurable for Animal Weighing Application
  • Easy Panel Mount Design
  • Optional Re-chargeable battery

In order to cater for wider clienteles, we have developed a new cost competitive digital weight indicator — the VC-200 series that was launched recently on the market. This series comes in 3 models, the VC-201 (plastic casing, VC-202 (plastic casing) and VC-203 (stainless steel). Our high volume manufacturing allows us to provide products with competitive pricing.

DOWNLOAD

The file below requires Acrobat Reader for viewing. Click here to get your FREE copy.

VC 201 Brochure (1MB pdf format)

SPECIFICATIONS

Specifications
Internal Resolution 1,000,000 counts at 3mV/V
Display Resolution Selectable (1/10,000 NTEP approved)
Input Sensitivity 1µV/graduation typical, 0.4µV/graduation minimum
Display Increments Selectable x1, x2, x5, x10, x20, x50, x100
Decimal Point Location Selectable 0 ~ 4
Display 7 Digits 7-Segment LED display, 14.2mm (0.56”) high, with
annunciators (7 LED lamps) for function select, Stable, Center Zero,
Net, Print, kg, lb, and Low Battery display
135
Keyboard 6 button keypad with tactile keys (includes 1 button for Power On/Off)
Audio Alarm Tone for key entry confirmation and low battery alarm
A/D Conversion Rate 7.5 updates per second
Load Cell Excitation Voltage 9.7VDC or 5VDC selectable. Drive up to six 350 ohm load cells
Analog Input Range 0.2mV/V to 3.0 mV/V maximum
Non-Linearity 0.01% of full scale or less
Over Capacity Display “CAP OL” when exceeds the full scale capacity
Tare Full capacity, push button tare
Auto Zero Tracking Selectable to 3.0 d by 0.5 d step
Motion Window Key-in data 0..255 (1 = 0.5 d)
Calibration Method Software – Menu driven prompting
Units of Measure Selectable kg/lb/g/oz, up to 2 units displayable
RFI/EMI Protection All signal and excitation lines filtered to –65db min. @ 500MHz
Filtering Selectable digital filter
Serial RS232C Data Output COM Port 1. Full Duplex or Bi-directional
COM Port 2. Simplex or Unidirectional (output only)
Selectable baud rates (1200,2400,4800,9600,19200), manual or auto
print, continuous data out or bi-directional communication
Remote Display Programmable as Remote Display
Print Format Gross Wt, Tare Wt, Net Wt
Power 100/115VAC or 220/230VAC, 50-60Hz, 6VA with built-in Charger for
12 VDC 2-2.3AH Rechargeable Sealed Lead Acid Battery
(Battery Dimension 67 (H) x 178 (W) x 34 (D) mm, is optional)
Current Consumption 100mA + 30mA per 350 ohm load cell
Operating Temperature -10°C to + 40°C
Relative Humidity Maximum 90% RH, Non-condensing
Shipping Weight 1.2kg (2.3kg with optional battery
Enclosure ABS Plastic Casing
Warranty One Year Limited Warranty

DIMENSION

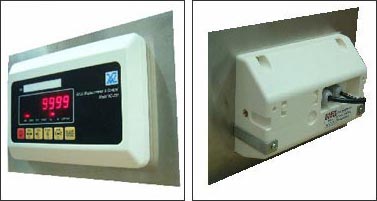

PANEL MOUNT DESIGN


VC 202



Introducing VMC’s latest cost competitive VC-200 series Digital Weight Indicator.

STANDARD FEATURES

  • 10,000 Display resolution (NTEP approved)
  • 10 Pre-defined Tare value
  • Selectable kg / lb / g / oz
  • Programmable as Main Indicator & Remote Display
  • Programmable custom print format
  • Configurable for Animal Weighing Application
  • Easy Panel Mount Design
  • Optional Re-chargeable battery

In order to cater for wider clienteles, we have developed a new cost competitive digital weight indicator — the VC-200 series that was launched recently on the market. This series comes in 3 models, the VC-201 (plastic casing, VC-202 (plastic casing) and VC-203 (stainless steel). Our high volume manufacturing allows us to provide products with competitive pricing.

DOWNLOAD

The file below requires Acrobat Reader for viewing. Click here to get your FREE copy.

VC 202 Brochure (485KB pdf format)

SPECIFICATIONS

Specifications
Internal Resolution 1,000,000 counts at 3mV/V
Display Resolution Selectable (1/10,000 NTEP approved)
Input Sensitivity 1uV/graduation minimum
Display Increments Selectable x1, x2, x5, x10, x20, x50, x100
Decimal Point Location Selectable 0 ~ 4
Display 7 Digits 7-Segment LED display, 14.2mm (0.56”) high, with annunciators (7 LED lamps) for function select, Stable, Center Zero, Net, Print, kg, lb, andLow Battery display
Keyboard 18 button (VC-202) or 6 button (VC-201) keypad with tactile keys(includes 1 button for Power On/Off)
Audio Alarm Tone for key entry confirmation and low battery alarm
A/D Conversion Rate 7.5 updates per second
Load Cell Excitation Voltage 9.8VDC or 5VDC selectable. Drive up to four 350 ohm load cells
Analog Input Range 0.2mV/V to 3.0 mV/V maximum
Non-Linearity 0.01% of full scale or less
Over Capacity Display “CAP OL” when exceeds the full Scale Capacity
Tare Full capacity, push button tare, numeric key tare.
Register and Recall 10 Pre-defined Tare valves
Auto Zero Tracking Selectable to 3.0 d by 0.5 d step
Motion Window Key-in data 0..255 (1 = 0.5 d)
Calibration Method Software – Menu driven prompting
Units of Measure Selectable kg/lb/g/oz, up to 2 units displayable
RFI/EMI Protection All signal and excitation lines filtered to –65db min. @ 500MHz
Filtering Selectable digital filter
RS232C data output COM Port 1. Full Duplex or Bi-directional
COM Port 2. Simplex or Unidirectional (output only)
Selectable baud rates (1200,2400,4800,9600,19200), manual or auto print, continuous data out or bi-directional communication
Remote Display Programmable as Main Indicator and Remote Display
Custom Print Format Programmable, up to 119 characters for Custom Print Format and up to 23 characters for Continuous Print Format
Set Points Selectable up to 2 Set Points for Low and High limit settings
Power 100/115VAC or 220/230VAC, 50-60Hz, 6VA with built-in Charger for 12 VDC 2-2.3AH Rechargeable Sealed Lead Acid Battery(Battery Dimension 67 (H) x 178 (W) x 34 (D) mm, is optional)
Current Consumption 100mA + 30mA per 350 ohm load cell
Operating Temperature -10 degrees C to + 40 degrees C
Relative Humidity Maximum 90% RH, Non-condensing
Dimensions 150 (6”)H x 230 (9.1”)W x 100 (4”)D mm – VC-202
140 (5.5”)H x 230 (9.1”)W x 90 (3.5”)D mm – VC-203
Shipping weight 1.2kg (2.3kg with optional battery) – VC-202
2.1kg (3.2kg with optional battery) – VC-203
Enclosure VC-202 ABS Plastic Casing, VC-203 Stainless Steel Casing
Warranty One Year Limited Warranty

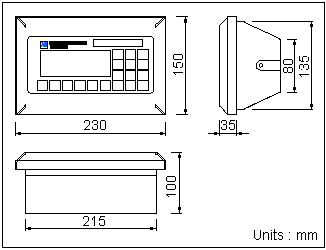

DIMENSION

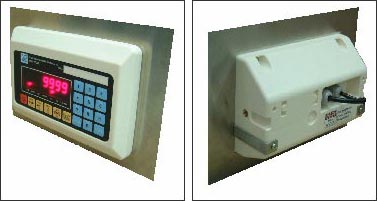

PANEL MOUNT DESIGN


VC 203



Introducing VMC’s latest cost competitive VC-200 series Digital Weight Indicator.

STANDARD FEATURES

  • 10,000 Display resolution ( NTEP, OIML approved)
  • 10 Pre-defined Tare value
  • Selectable kg / lb / g / oz
  • Programmable as Main Indicator & Remote Display
  • Programmable custom print format
  • Configurable for Animal Weighing Application
  • Easy Panel Mount Design
  • Optional Re-chargeable battery

In order to cater for wider clienteles, we have developed a new cost competitive digital weight indicator — the VC-200 series that was launched recently on the market. This series comes in 3 models, the VC-201 (plastic casing, VC-202 (plastic casing) and VC-203 (stainless steel). Our high volume manufacturing allows us to provide products with competitive pricing.

DOWNLOAD

The file below requires Acrobat Reader for viewing. Click here to get your FREE copy.

VC 203 Brochure (485KB pdf format)

SPECIFICATIONS

Specifications
Internal Resolution 1,000,000 counts at 3mV/V
Display Resolution Selectable (1/10,000 NTEP approved, 1/6000 OIML approved)
Input Sensitivity 1uV/graduation minimum
Display Increments Selectable x1, x2, x5, x10, x20, x50, x100
Decimal Point Location Selectable 0 ~ 4
Display 7 Digits 7-Segment LED display, 14.2mm (0.56”) high, with annunciators (7 LED lamps) for function select, Stable, Center Zero, Net, Print, kg, lb, andLow Battery display
Keyboard 18 button (VC-202) or 6 button (VC-201) keypad with tactile keys(includes 1 button for Power On/Off)
Audio Alarm Tone for key entry confirmation and low battery alarm
A/D Conversion Rate 7.5 updates per second
Load Cell Excitation Voltage 9.8VDC or 5VDC selectable. Drive up to four 350 ohm load cells
Analog Input Range 0.2mV/V to 3.0 mV/V maximum
Non-Linearity 0.01% of full scale or less
Over Capacity Display “CAP OL” when exceeds the full Scale Capacity
Tare Full capacity, push button tare, numeric key tare.
Register and Recall 10 Pre-defined Tare valves
Auto Zero Tracking Selectable to 3.0 d by 0.5 d step
Motion Window Key-in data 0..255 (1 = 0.5 d)
Calibration Method Software – Menu driven prompting
Units of Measure Selectable kg/lb/g/oz, up to 2 units displayable
RFI/EMI Protection All signal and excitation lines filtered to –65db min. @ 500MHz
Filtering Selectable digital filter
RS232C data output COM Port 1. Full Duplex or Bi-directional
COM Port 2. Simplex or Unidirectional (output only)
Selectable baud rates (1200,2400,4800,9600,19200), manual or auto print, continuous data out or bi-directional communication
Remote Display Programmable as Main Indicator and Remote Display
Custom Print Format Programmable, up to 119 characters for Custom Print Format and up to 23 characters for Continuous Print Format
Set Points Selectable up to 2 Set Points for Low and High limit settings
Power 100/115VAC or 220/230VAC, 50-60Hz, 6VA with built-in Charger for 12 VDC 2-2.3AH Rechargeable Sealed Lead Acid Battery(Battery Dimension 67 (H) x 178 (W) x 34 (D) mm, is optional)
Current Consumption 100mA + 30mA per 350 ohm load cell
Operating Temperature -10 degrees C to + 40 degrees C
Relative Humidity Maximum 90% RH, Non-condensing
Dimensions 150 (6”)H x 230 (9.1”)W x 100 (4”)D mm – VC-202
140 (5.5”)H x 230 (9.1”)W x 90 (3.5”)D mm – VC-203
Shipping weight 1.2kg (2.3kg with optional battery) – VC-202
2.1kg (3.2kg with optional battery) – VC-203
Enclosure VC-202 ABS Plastic Casing, VC-203 Stainless Steel Casing
Warranty One Year Limited Warranty

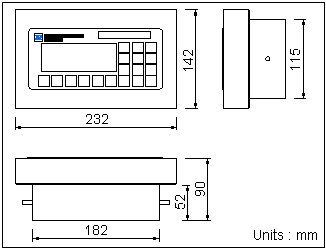

DIMENSION


PANEL MOUNT DESIGN
